Office Complex

Central VRF equipment supply, precise cooling load calculations, and structural duct routing for a multi-story commercial hub.

Location

Riyadh, KSA

Area Size

12,000 sq.m

System

VRF

Volume

45 Sets

Project Background

The project involved outfitting a newly constructed 12,000 sq.m commercial office block in Riyadh. The facility accommodates multiple independent tenant spaces across 8 floors, requiring an HVAC infrastructure capable of decentralized billing, independent zone control, and continuous operation under extreme Middle Eastern climate conditions.

Engineering Challenge

Ambient temperatures frequently exceeding 52°C during peak summer hours, degrading standard compressor efficiency.
Strict limitations on rooftop load-bearing capacity, restricting the use of heavy traditional water-cooled chillers.

Delivered Solution

Deployed T3 tropical-rated VRF outdoor units equipped with enhanced heat sinks and sub-cooling circuitry.
Modular system design distributed weight evenly across structural beams, meeting structural integrity requirements.

Equipment Specifications

Equipment Supplied

45x T3 Inverter VRF Outdoor Units
Total Cooling Capacity

3,850 kW
Indoor Units

180x Medium Static Pressure Ducted
Refrigerant Type

Eco-friendly R410a
Control Network

BACnet BMS Gateway Integration

Site Execution Records

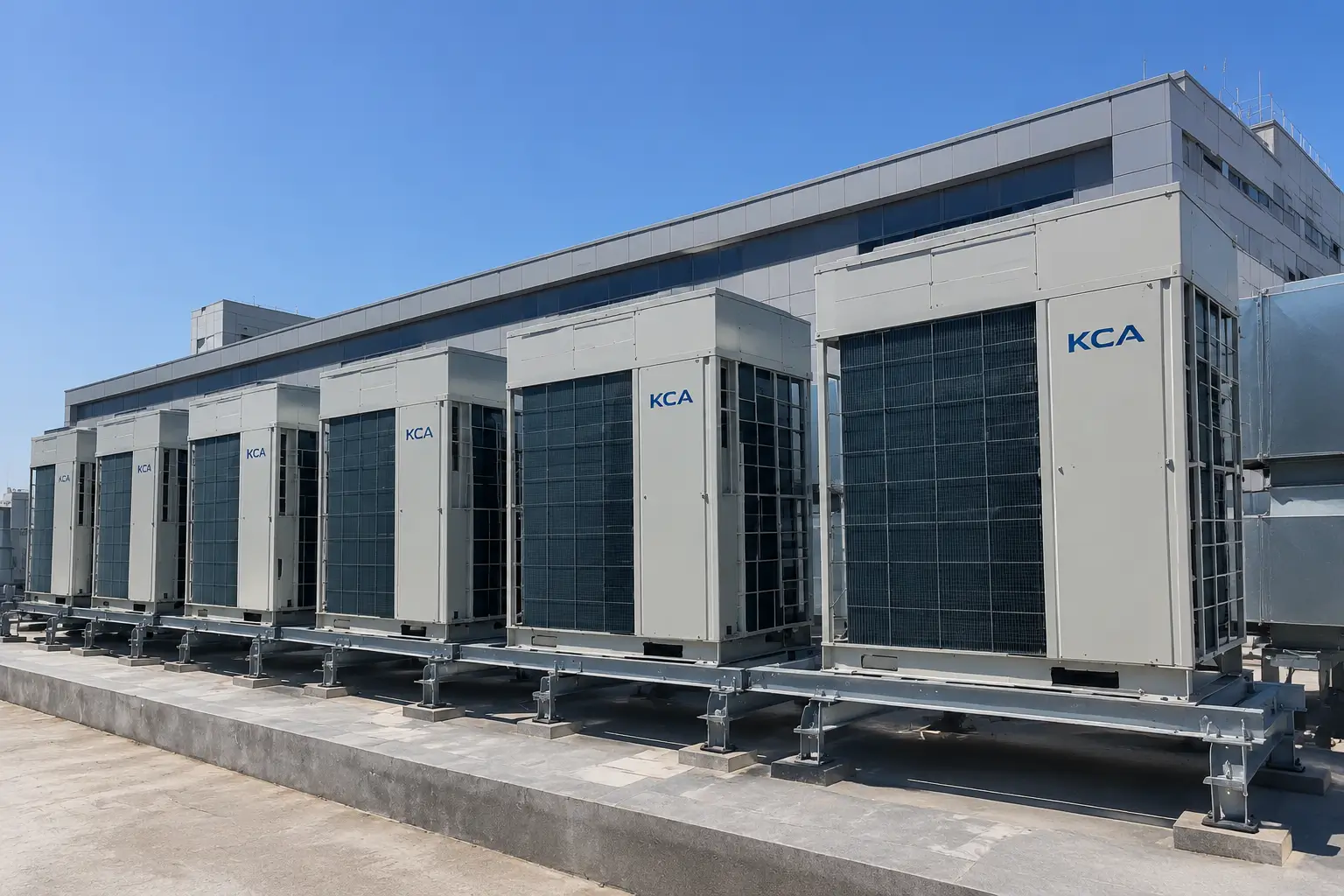

Modular Outdoor Unit Array

T3 Rated Compressor Sub-assembly

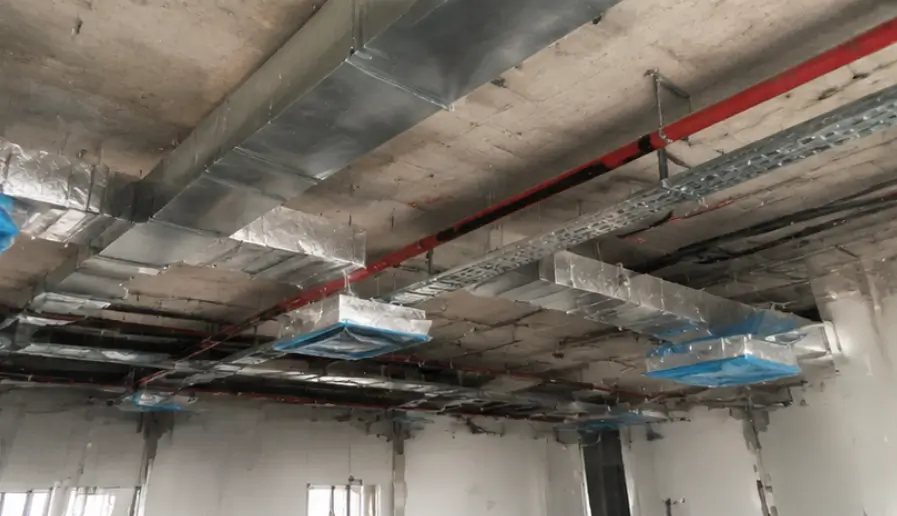

Ceiling Concealed Ductwork

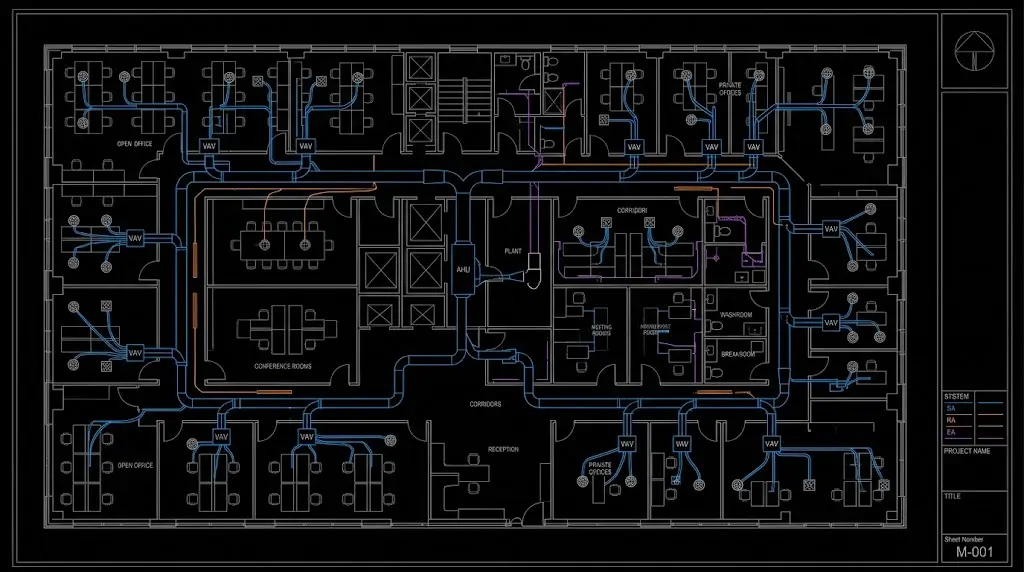

CAD Duct Routing Plan
